Druvfrö Torkmaskin

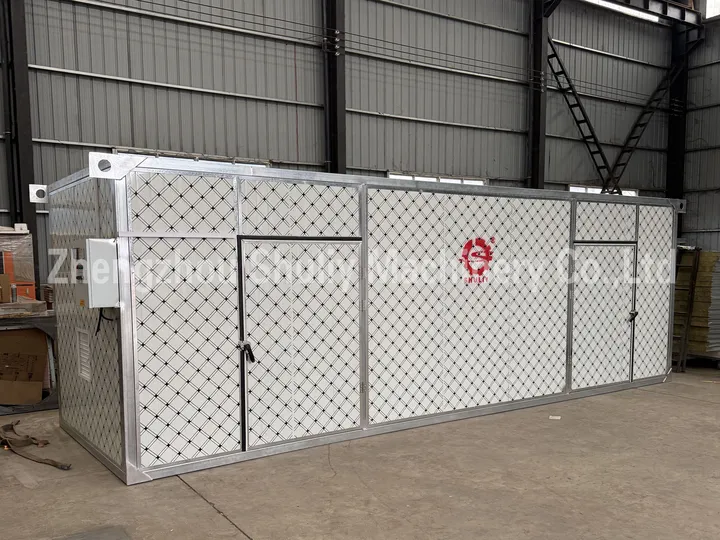

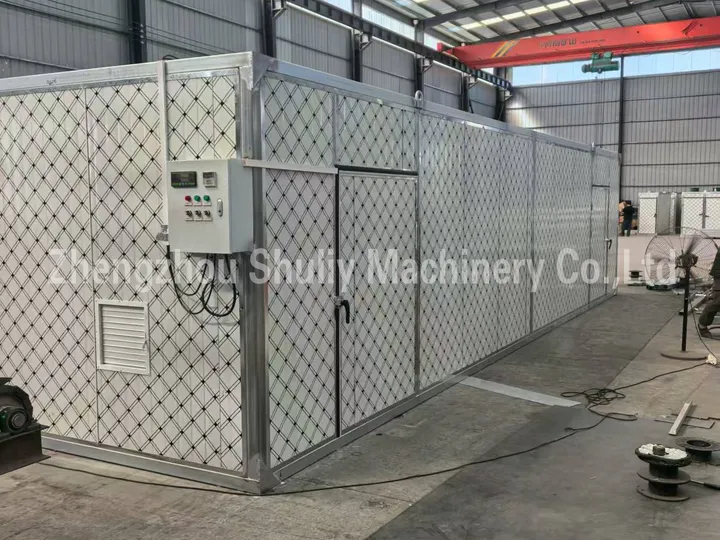

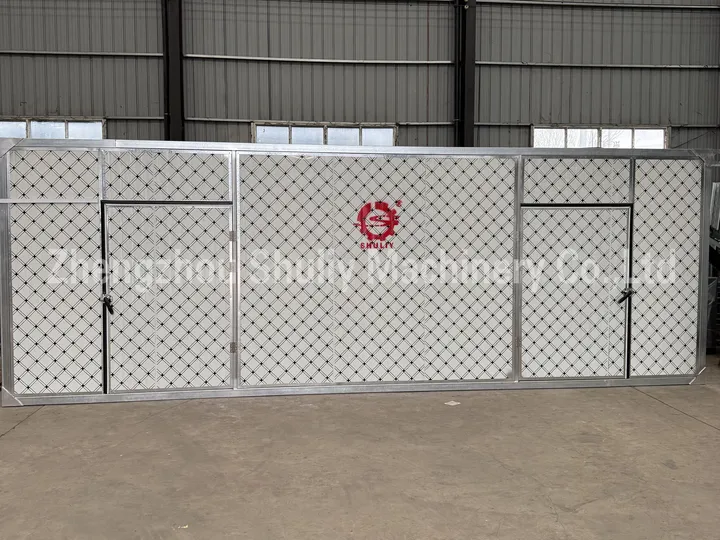

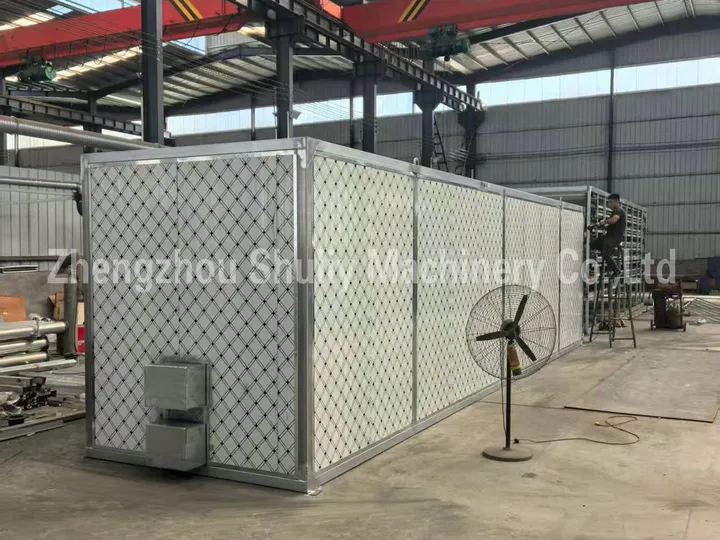

The grape seed drying machine is an industrial batch drying system designed specifically for dehydrating grape seeds while preserving their high-value oils and bioactive compounds. Built around a heat pump dryer core, this closed-chamber drying equipment processes 300–8,000 kg of fresh grape seeds per batch, reducing moisture from 75–82% down to 8–12% in a controlled low-temperature environment. The resulting dried seeds are ideal for cold-pressing into grape seed oil, grinding into antioxidant-rich powder, or extracting oligomeric proanthocyanidins (OPC) for nutraceutical and cosmetic applications.

Compared with conventional high-temperature hot air systems, this grape seed drying machine operates at a gentle 40–50°C, preventing thermal oxidation of delicate polyunsaturated fats and protecting heat-sensitive polyphenols. The heat pump technology recycles thermal energy from the exhaust air, delivering a coefficient of performance (COP) of 3.0–4.0 and cutting electricity consumption by up to 70% versus direct electric heating. For processors seeking consistent batch quality, food-grade compliance, and long-term operating cost control, this low-temperature drying solution offers a clear competitive advantage.

Shuliy has manufactured industrial drying equipment for over two decades, exporting heat pump dryers to more than 30 countries. Every grape seed drying chamber is constructed with 304 stainless steel trays and galvanized or stainless steel housings, meeting EU and FDA food-contact material standards. Comprehensive after-sales support includes on-site commissioning, operator training, and lifetime technical consultation.

Why Low-Temperature Heat Pump Drying Protects Grape Seed Quality?

Grape seeds are dense, oil-rich kernels containing up to 20% lipids and potent antioxidant compounds such as proanthocyanidins, resveratrol, and tocopherols. These attributes make them valuable raw materials, but they also impose strict demands on the drying process:

• Thermal Sensitivity: Exposure to temperatures above 60°C accelerates lipid oxidation and degrades polyphenol content, directly reducing the market value of grape seed oil and extracts.
• Moisture Gradient Risk: Rapid surface drying can trap moisture inside the seed, leading to internal mold growth and rancidity during storage.
• Uniformity Requirements: Uneven moisture distribution causes inconsistent pressing yields and variable extract potency, creating quality control challenges for downstream processors.
• Energy Costs: Traditional electric or gas-fired dryers consume excessive energy for the long drying cycles grape seeds require, eroding profit margins at scale.

The Shuliy heat pump dryer addresses each of these challenges through closed-loop dehumidification. By circulating conditioned air at 40–50°C with precise humidity control, the drying room gently draws moisture from the seed interior without overheating the surface. The result is uniform dehydration that preserves nutritional integrity, extends shelf life, and maintains the light color and neutral aroma demanded by premium buyers.

Who Needs a Grape Seed Drying Machine?

This drying equipment serves a diverse range of agricultural and industrial processors:

• Agricultural Cooperatives: Add value to surplus or second-grade grape harvests through seed recovery and drying.
• Wineries and Vineyards: Convert pomace waste into a sellable by-product, improving overall harvest profitability and reducing disposal costs.
• Grape Seed Oil Producers: Prepare raw material with optimal moisture content (8–12%) to maximize cold-pressing yield and prevent hydrolytic rancidity.
• Nutraceutical Extractors: Produce dried seeds with preserved OPC levels for antioxidant supplement manufacturing.
• Cosmetic Ingredient Suppliers: Deliver standardized raw material for polyphenol extraction used in anti-aging skincare formulations.

Technical Specifications of Grape Seed Drying Machine

Parameter	Specifikation	Kundvärde
Modellutbud	SL-2 till SL-24	8 models from 300–8,000 kg for precise capacity matching
Torkmetod	Luftvärmepump	70% energy savings versus electric heating; no combustion emissions
Temperaturområde	30–80°C (adjustable)	Low-temperature drying preserves oils and active compounds
Control Precision	±1°C temperature; ±3% RH humidity	Prevents thermal damage and case hardening
Batchkapacitet	300–8,000 kg fresh seeds	Scales from pilot production to industrial volume
Drying Cycle	12–18 hours/batch	Fast turnaround enables 1–2 batches per day
Brickmaterial	304 stainless steel (perforated)	Food-grade, corrosion-resistant, easy to clean
Chamber Construction	Galvanized steel or SUS304	Durable frame with 75 mm rock wool insulation
Styrenhet	PLC with HMI touchscreen	Automated profiles reduce labor and human error
Slutfuktighet	8–12%	Optimal for oil pressing, milling, and long-term storage

Model Selection Guide

Modell	Dimensions (mm)	Drying Crews	Kapacitet (kg/ sats)
SL-2	4,000 × 1,860 × 2,500	2	300–600
SL-4	6,000 × 1,860 × 2,500	4	500–1,000
SL-6	7,200 × 2,300 × 2,500	6	800–1,500
SL-8	8,500 × 2,300 × 2,500	8	1,000–2,000
SL-10	10,000 × 2,300 × 2,500	10	1,200–2,500
SL-12	8,500 × 3,300 × 2,500	12	2,500–4,000
SL-18	8,500 × 5,000 × 2,500	18	4,000–6,500
SL-24	12,000 × 5,000 × 2,500	24	5,000–8,000

How Does the Heat Pump Dryer Work?

The grape seed drying machine operates on a closed-loop heat pump dehumidification cycle with no open flame and no direct high-temperature air contact:

1. Evaporation Stage: Ambient air is drawn across the evaporator coil, where refrigerant absorbs thermal energy and the air is pre-cooled.
2. Compression Stage: The compressor raises refrigerant temperature and pressure, creating a high-grade heat source.
3. Condensation Stage: Hot refrigerant circulates through the condenser coil inside the drying chamber, heating circulated air to the setpoint temperature (typically 40–50°C for grape seeds).
4. Dehumidification Stage: Warm, moist air passes over the evaporator coil, where water vapor condenses into liquid and drains from the system. The now-dry air is reheated and recirculated.
5. Control Stage: PLC sensors monitor temperature, humidity, and airflow, adjusting compressor speed, fan velocity, and exhaust damper position in real time.

This energy-recovery design means the drying equipment produces 3–4 kW of usable heat for every 1 kW of electrical input, a fundamental efficiency advantage over conventional electric or gas-fired dryers.

Grape Seed Drying Process: Step by Step

I praktiken torkas druvfrön vanligtvis med följande luftenergi (värmepump) process:

Separering och rengöring

• Separera fröna från druvskalen och skölj dem kort för att ta bort föroreningar.

Avvattningsförbehandling

• Dränera fröna efter tvätt för att minska ytfuktigheten.

Jämn lastning

• Sprid fröna jämnt på brickor eller nätställen för att undvika ansamling.

Lågtemperatur Luftenergi Torkning

• Torka med cirkulerande varm luft vid 40–50 °C för att låta fukten avdunsta jämnt.

Kylning och urlastning

• När fukthalten sjunker till cirka 8–12 %, avlägsna och kyl fröna innan lagring eller vidare bearbetning.

Lågtemperatur luftenergi torkar hjälper till att bibehålla stabiliteten hos druvfröoljor och bevara aktiva föreningar.

Kärnfördelar med Luftenergi Druvfrö Torkmaskin

Deep Processing Applications for Dried Grape Seeds

Properly dried grape seeds unlock multiple high-margin revenue streams:

• Grape Seed Oil Cold Pressing: Seeds at 8–12% moisture yield the highest oil extraction rate with minimal free fatty acid formation. The light color and neutral taste of low-temperature dried seeds command premium pricing in culinary and cosmetic oil markets.
• Grape Seed Powder Production: Uniformly dried seeds mill into fine flour with consistent particle size, ideal for functional food additives, protein supplements, and animal feed fortification.
• OPC and Polyphenol Extraction: Preserved proanthocyanidin content in low-temperature dried seeds maximizes extract yield for pharmaceutical and skincare ingredient manufacturing.
• Bioactive Feed Additives: Ground grape seed meal with retained antioxidant activity is used as a natural growth promoter and shelf-life extender in poultry and aquaculture feeds.

Solving Common Grape Seed Drying Challenges

Customer Pain Point	Shuliy-lösning	Result
Oil oxidation and rancidity from overheating	Heat pump drying at 40–50°C with ±1°C precision	Preserves fatty acid profile; extends storage stability to 18+ months
Uneven moisture is causing mold in storage	360° turbulent airflow and automated humidity exhaust	Batch uniformity within ±1.5% moisture deviation
High electricity bills from resistance heaters	Heat pump COP 3.0–4.0 with energy recovery	60–70% reduction in drying energy cost per kg
Seasonal capacity peaks overwhelm equipment	Modular SL-series from 300–8,000 kg with fast 12–18 h cycles	1–2 batches per day; scalable multi- chamber expansion
Food safety audit failures from corroded trays	304 stainless steel trays and food-grade chamber lining	Full compliance with EU, FDA, and HACCP material standards

Varför välja Shuliy Luftenergi Grape Seed Torkmaskin?

• Mogen värmepumpsteknologi säkerställer tillförlitlig prestanda.
• Flera specifikationer tillgängliga, med anpassningsbara torkrumstorlekar.
• Lämplig för olika material, inklusive frön, pressrester och skal.
• Kompatibel med rengörings-, transport-, malnings- och pressutrustning för integrerad bearbetning.
• Exportklar design, med stabil drift och hållbar struktur.

Shuliy erbjuder inte bara luftenergitorkare utan fokuserar också på fullständiga druvfrö tork- och djupbearbetningslösningar, vilket optimerar genomförbarheten och långsiktiga driftskostnader.
